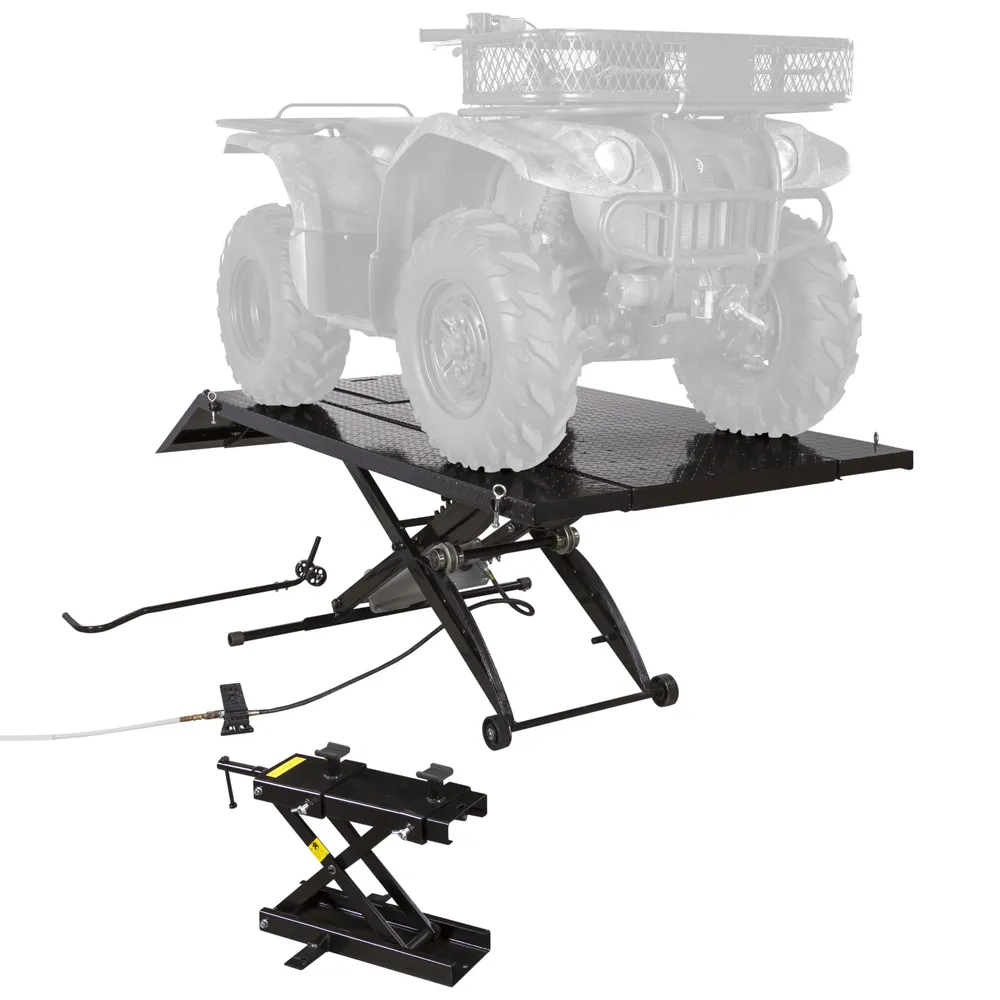

Pneumatic ATV Lift Table (Wide) - 1,000 lb. Cap

Pneumatic ATV Lift Table (Wide) - 1,000 lb. Cap

Free Shipping
$2,169.99
ITEM BW-1000A-XW-ATV
In Stock - Ready to Ship

Hoist your ATV off the ground to maintain it with precision and convenience atop this extra-wide pneumatic ATV lift table. It’s an essential shop fixture for everything from tire changes to undercarriage work, and supports four-wheelers up to 1,000 lbs. safely.

Features

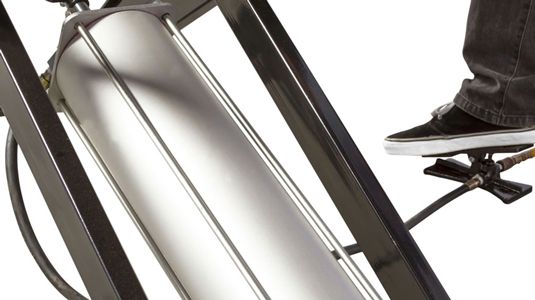

Pneumatic height adjustment is controlled with foot pedal

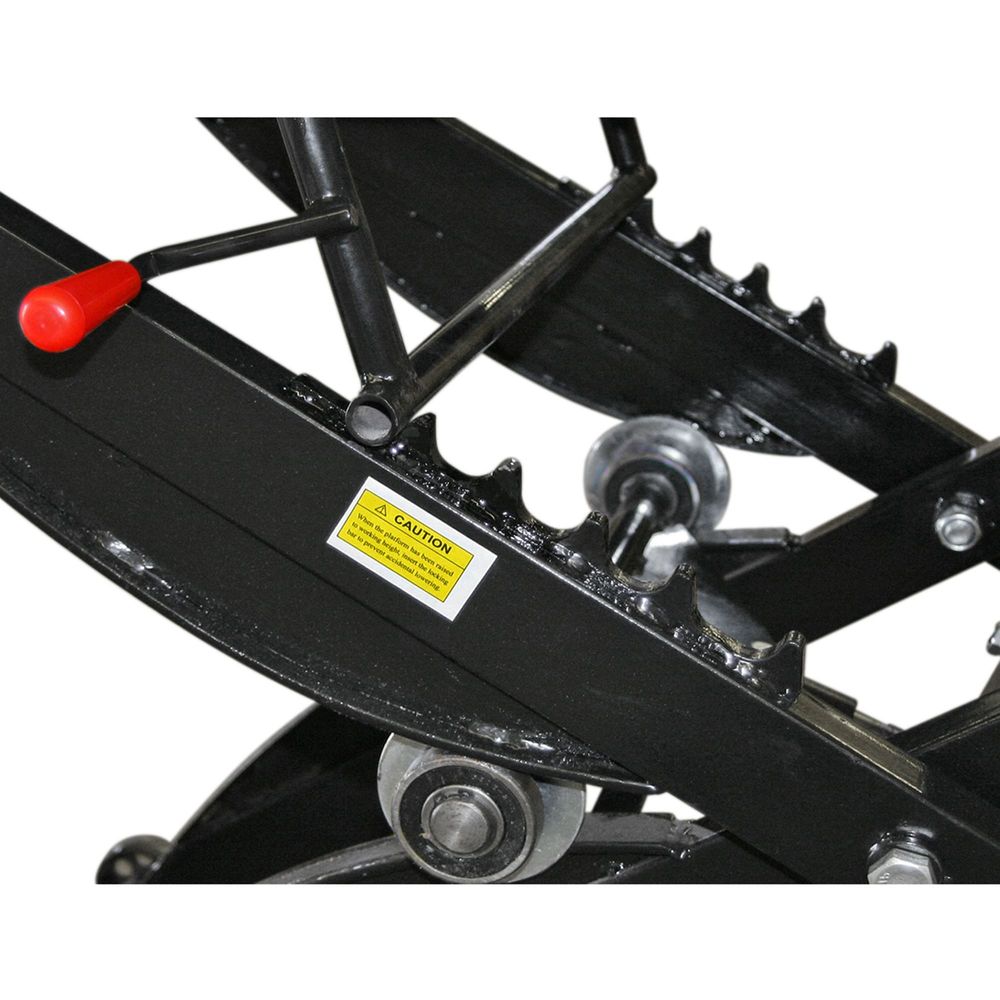

This lift requires 90-100 psi of compressed air to operate, and raises from 8 to 33 inches with five safety lock positions. Air compressors are not included with the table.

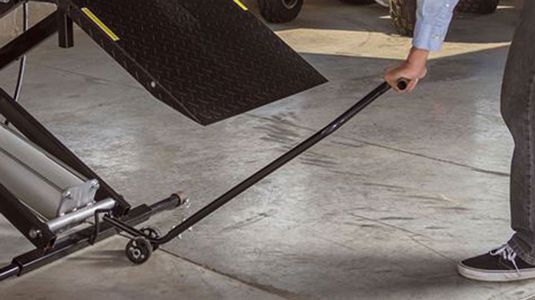

Mobile with two front casters and included dolly

Thanks to the two front casters and an included dolly, repositioning this lift table in your space is easier than ever. Simply attach the dolly to the built-in connection point and use the wheels to swivel the angle as the table moves.

Built-in adjustable wheel clamp vise, wheel stop and tie-down points secure motorcycles to table

A nice dual-purpose feature if you also own a bike, the front wheel stop prevents the front tire from overshooting the end of the platform. The adjustable wheel clamp/vise has a crank handle with a large knob for better grip. Two eyelets on either side of the table allow you to secure tie-down straps so the bike stays put.

Why you'll love it!
Specifications
78-3/4"
44"
33"
21-5/8"
1,000 lbs.
370 lbs.
Steel
More Information

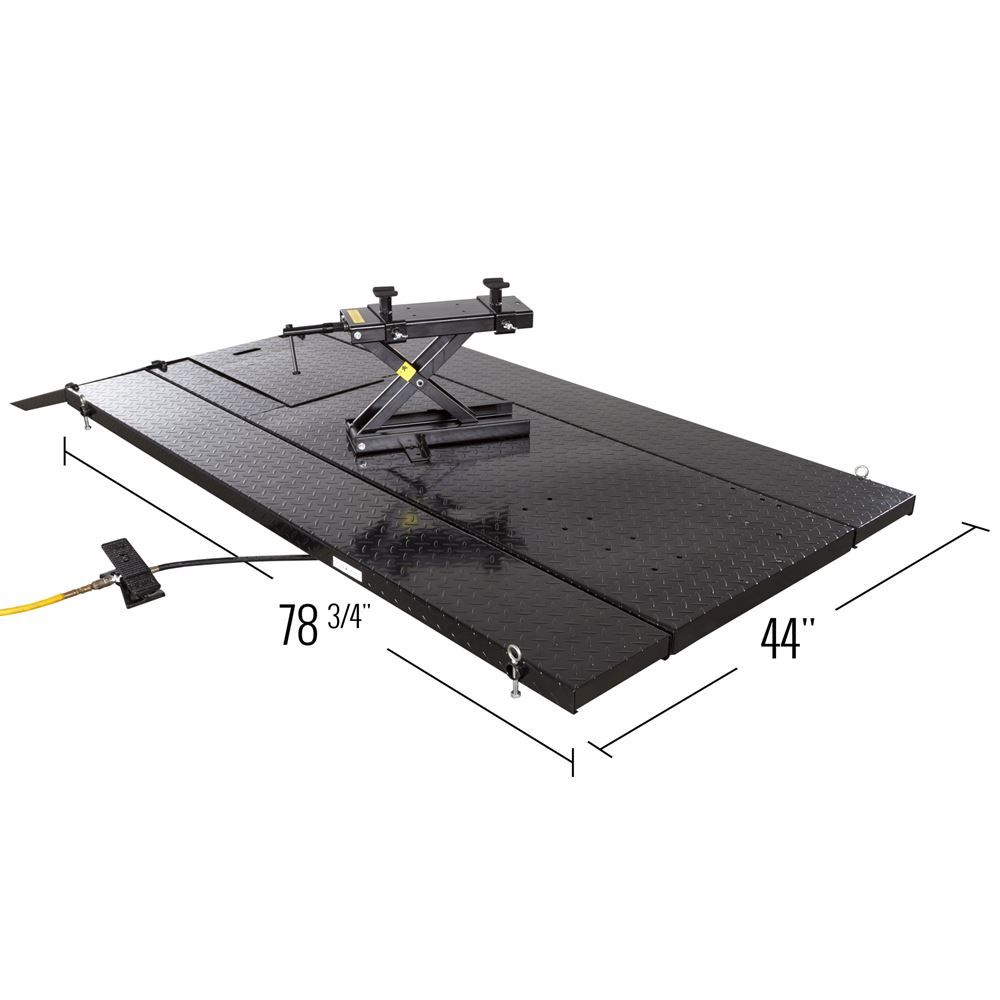

Drive onto the table via a removable 25-5/8" long rear drive-on loading ramp. Once secured in place, use the foot pedal to adjust the table from 8" to 33" lift heights. The wide berth accommodates large models and a rear drop-out panel is ideal for servicing hard-to-reach aspects.

Manufactured from heavy-duty black powder-coated steel, it’s ready to stand up to frequent use. The stand moves effortlessly thanks to included dolly and front wheels. This ATV lift table is rated for both home and commercial shop use.

We stand by our Products! All Black Widow purchases are backed by a 1 year warranty and are guaranteed to be free of defects at time of purchase.

Lift Table Instruction Manual Side Extensions Instruction Manual
