Hydraulic ATV Lift Table - 1,500 lb. Cap
Key Features:
- Raises ATVs 6.75" to 33.5" for repairs or maintenance; air-over-hydraulic operation
- 1,500 lb. weight capacity; 78" L x 47" W platform with 24" L removable ramp
- Powder-coated steel construction with rear drop-out panel

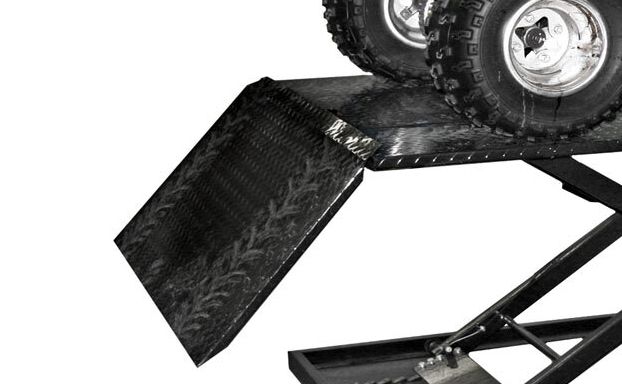

Extra-wide platform fits ATVS and UTVS up to 47” W
The large platform and ramp offers plenty of room for ATV and UTV tires, so that driving up and onto the platform is easy. Once lifted, the ramp removes and a rear drop-out panel provides convenient rear underbody access.
Smooth air-over-hydraulic lift height controlled with foot pedal
This lift requires a minimum of 90 psi of compressed air to operate, and raises from 6.75 to 33.5 inches. Air compressors are not included with the table. The fully stationary base has two front levelers to ensure an even work surface.

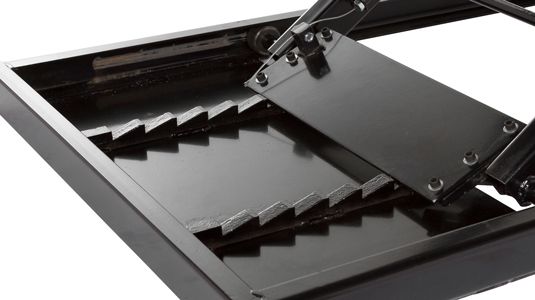

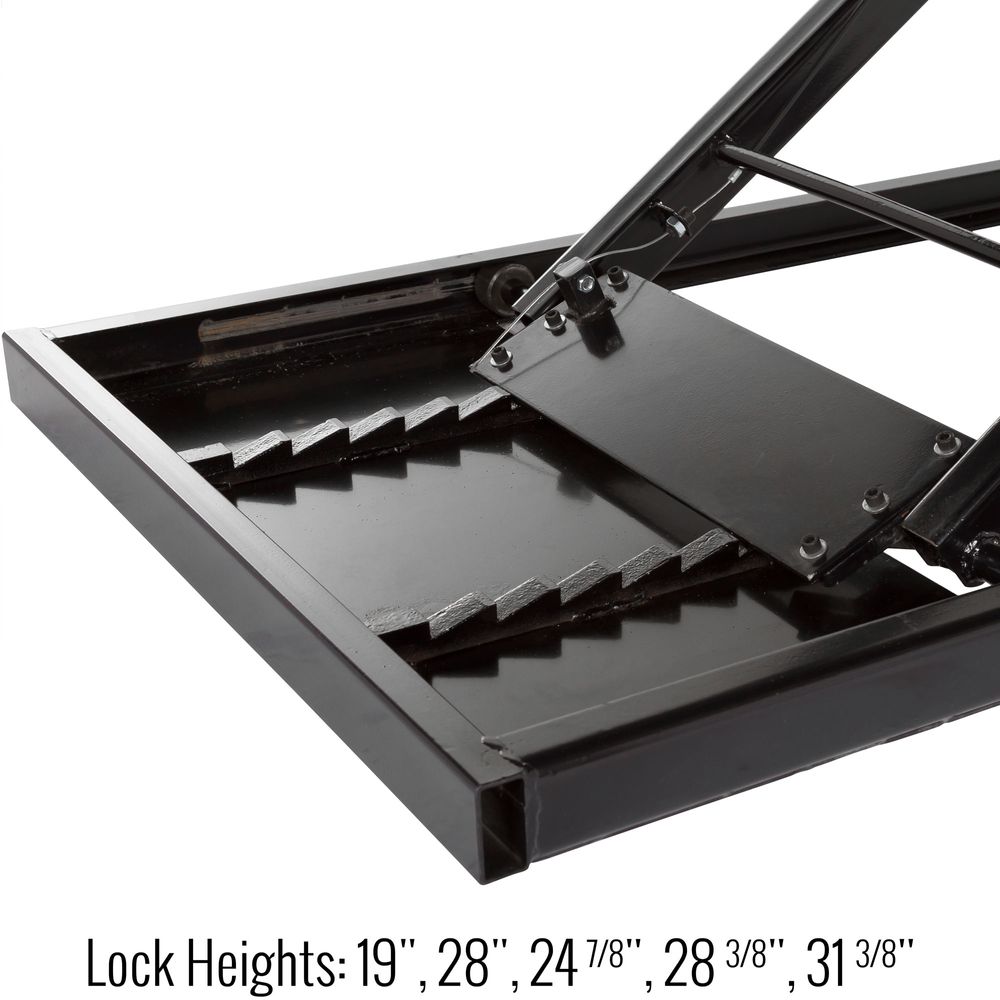

Ground-level safety locks operate automatically and release manually
For safety while the table is in use, a series of safety locks engage as the table lifts to prevent severe injury and damage.
Diamond plate traction and an extra-wide platform make working on your ATV in the comfort of your own garage even easier.
This lift table uses air-over-hydraulics to raise ATVs from 6.75" to 33.5" and can support to up 1,500 lbs.
It comes with a 24" long removable loading ramp and has a rear drop-out panel for easier access to the underside of your vehicle.
- Raises ATVs 6.75" to 33.5" for repairs or maintenance; air-over-hydraulic operation
- 1,500 lb. weight capacity; 78" L x 47" W platform with 24" L removable ramp
- Powder-coated steel construction with rear drop-out panel
