ProLift Pneumatic ATV Lift Table - 1,500 lb. Cap

$1,644.99
ITEM #BW-PROLIFT-HDXW-ATV
Free Shipping
In Stock, Ready to Ship

Key Features:

  • Raises motorcycles or ATVs 7" to 31.25" repairs or maintenance; pneumatic operation
  • 1,500 lb. weight capacity; extra-long 105.5"L x 48"W platform
  • Powder-coated steel construction with rear drop-out panel for servicing motorcycle tires

See More…

Features

Side extensions and loading ramps for the perfect amount of width

Doubling the width of the standard table, the extension kit includes two 84" L x 12" W side pieces and two 20" L x 12" W loading ramps. If you're working on a bike and don't need extra width, install those suckers upside down and use’em as a tool tray.

Air-over-hydraulic operation for smooth, consistent operation

Hook up the foot pump to the air compressor of your choice (90-110 PSI minimum required) and enjoy the smooth, pedal-operated movement as the hydraulic cylinder raises and lowers the table as needed.

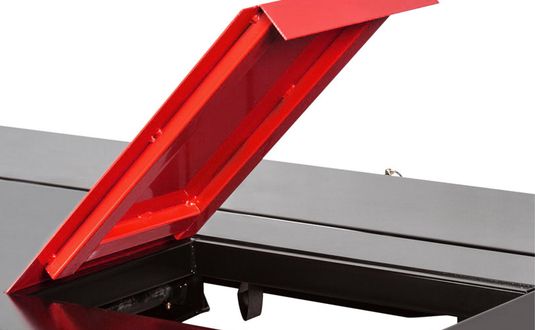

Rear drop-out panel gives easier access to underside

Great for underbody repairs in otherwise hard-to-reach locations, the removable rear drop-out panel means less craning your neck and more wrenching.

Why you'll love it!
Specifications
Length:
105-1/2"
Width:
48"
Height:
31-1/4"
Ramp Length:
20"
Maximum Capacity:
1,500 lbs.
Weight:
447 lbs.
Material:
Steel
More Information

After hundreds of hours tearing through the underbrush, muddy trails and low water crossings, your ATV deserves a little TLC. Get your ATV off the ground and up to a serviceable height using this pneumatic ATV lift table. It’s made with safety, stability and accessibility in mind.

Use the easy-access pedal-operated compressed air pump (90-110 psi) to raise the table from 7"-31-1/4", so it’s always at the ideal working height. A 12” drop-out service panel gives you easy maneuverability when working.

This extra-long table accommodates four-wheelers up to 1,500 lbs., complete with a convenient 20” removable loading ramp. Manufactured from durable, powder-coated steel, this lift tables includes all hardware needed for installation. ATV lift jack comes with a set of 3-1/2" and 5-1/4" interchangeable supports topped with rubber grips.

  • Raises motorcycles or ATVs 7" to 31.25" repairs or maintenance; pneumatic operation
  • 1,500 lb. weight capacity; extra-long 105.5"L x 48"W platform
  • Powder-coated steel construction with rear drop-out panel for servicing motorcycle tires

We stand by our Products! All Black Widow purchases are backed by a 1 year warranty and are guaranteed to be free of defects at time of purchase.
